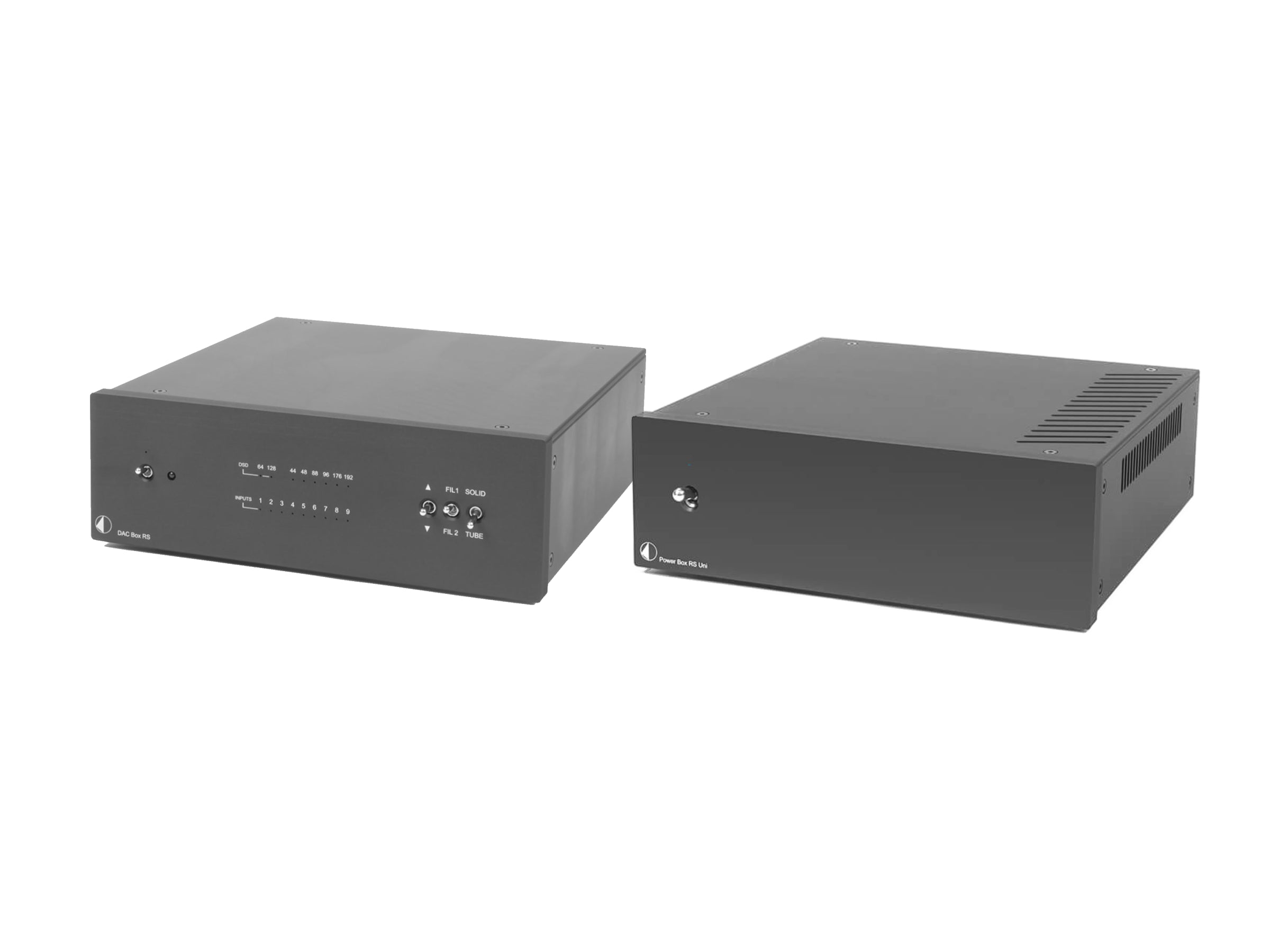

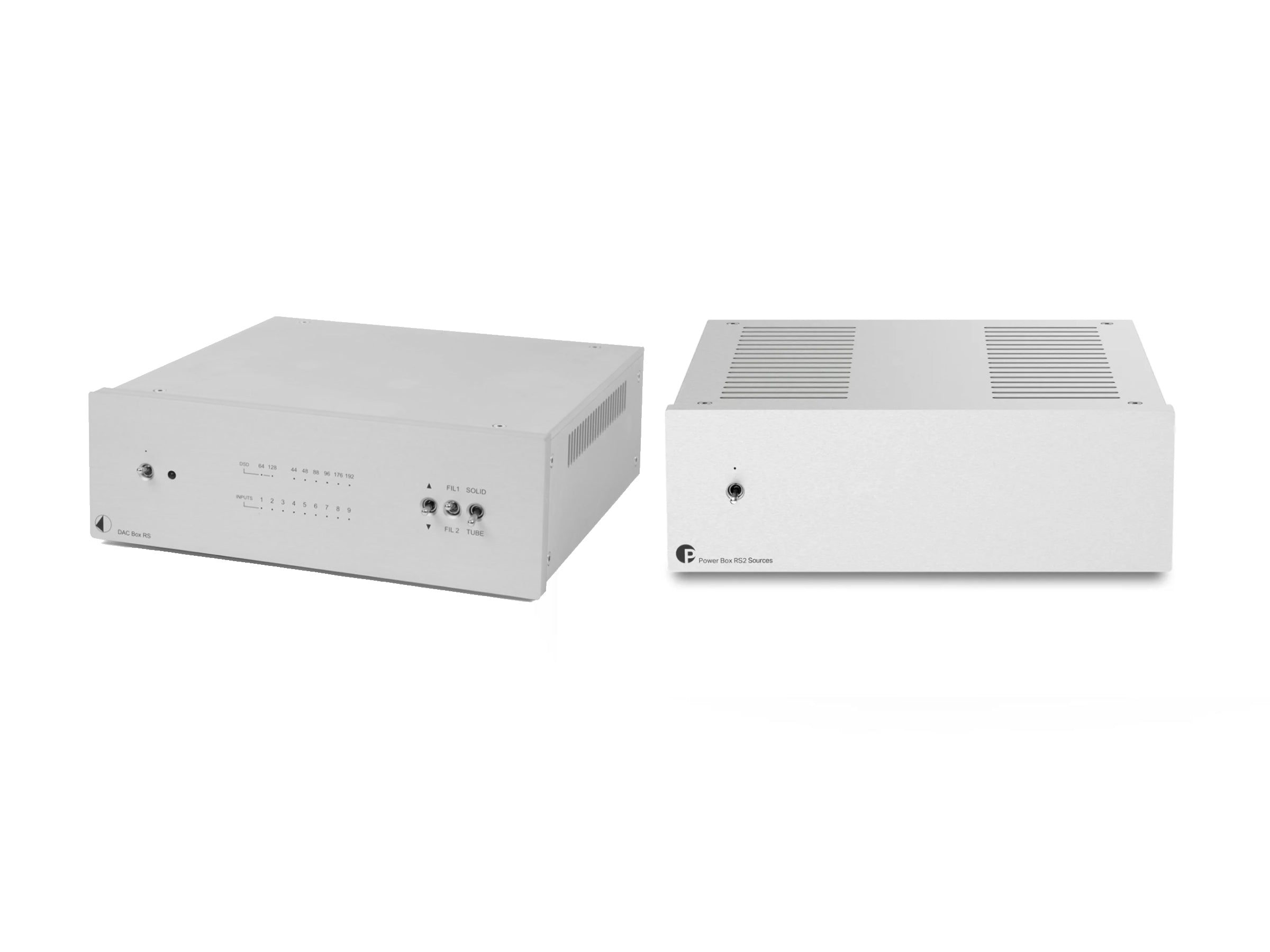

Pro-Ject DAC Box RS Final Edition + Power Box RS2 Sources
The Pro-Ject DAC Box RS is a reference-class digital-to-analogue converter designed for audiophiles seeking exceptional performance from their digital stereo sources. It serves as a high-quality USB audio interface for HD computer audio, offering versatile connectivity options. The DAC Box RS supports I2S with Master Clock, AES/EBU, optical, and coaxial inputs, providing compatibility with a wide range of digital audio devices. With full DSD capability (up to DSD128) and support for 24/192kHz HD audio on all inputs (96/24 for optical), it ensures outstanding sound quality. Equipped with two premium PCM 1792 DAC chips, the DAC Box RS also features selectable digital filters to allow users to fine-tune the sound to their preferences.
Features
- Selected Diamond ECC88 high-end tubes
- Selected components and improved internal wiring
- Double top grade 24bit/192kHz PCM-1792 D/A chip from Texas Instruments
- 9 Inputs: I2S, asynchronous USB, AES-EBU, optical, coax
- DSD (up to DSD128) capability (DSD over PCM)
- I2S interface for CD Box RS
- 2 selectable digital filter settings
- Fully balanced analogue audio circuitry
- Tube and solid-state output stage (switchable)
- Ultra linear and ultra low noise circuitry
- IR remote control included
- XLR and RCA line level output sockets

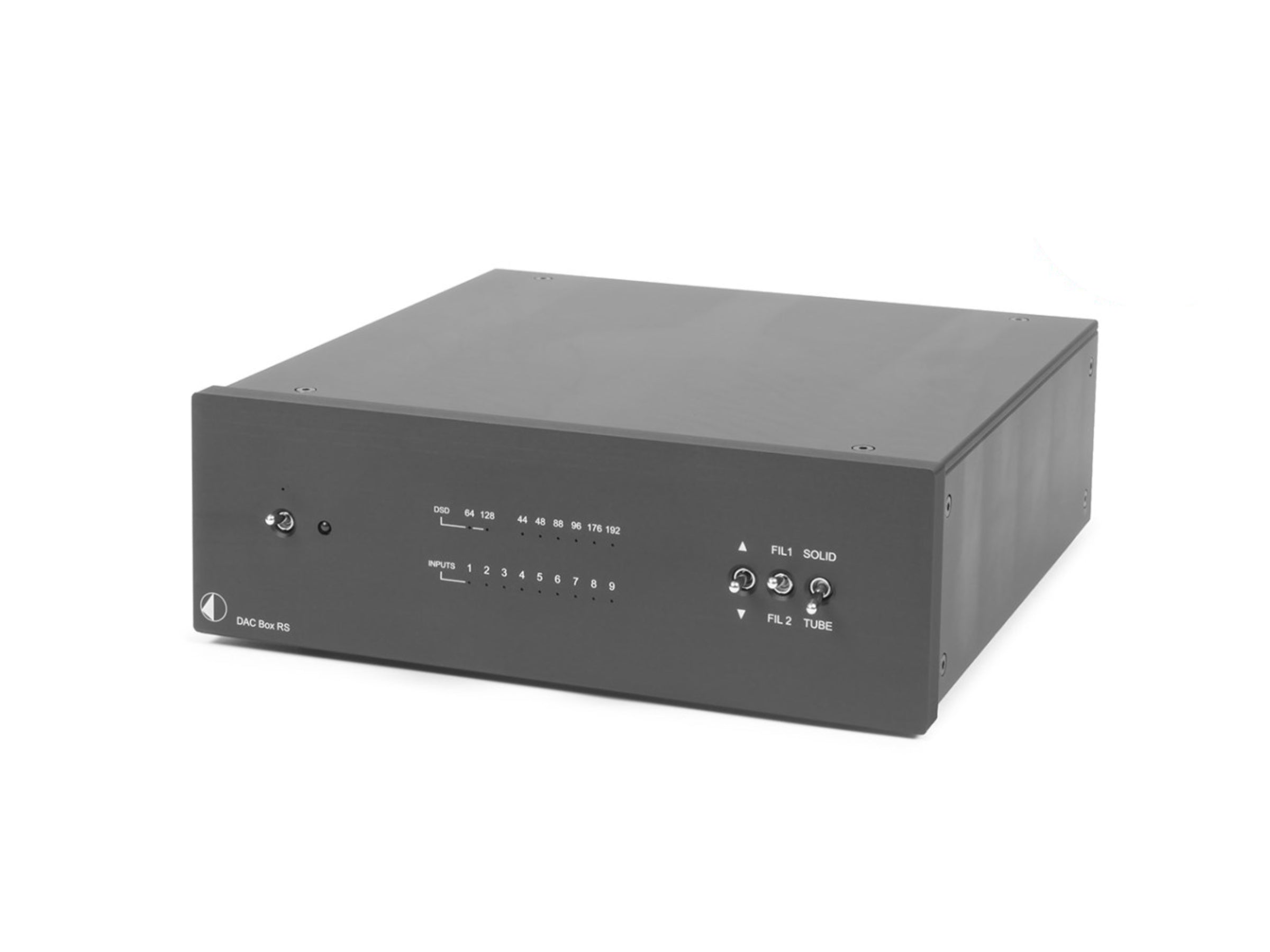

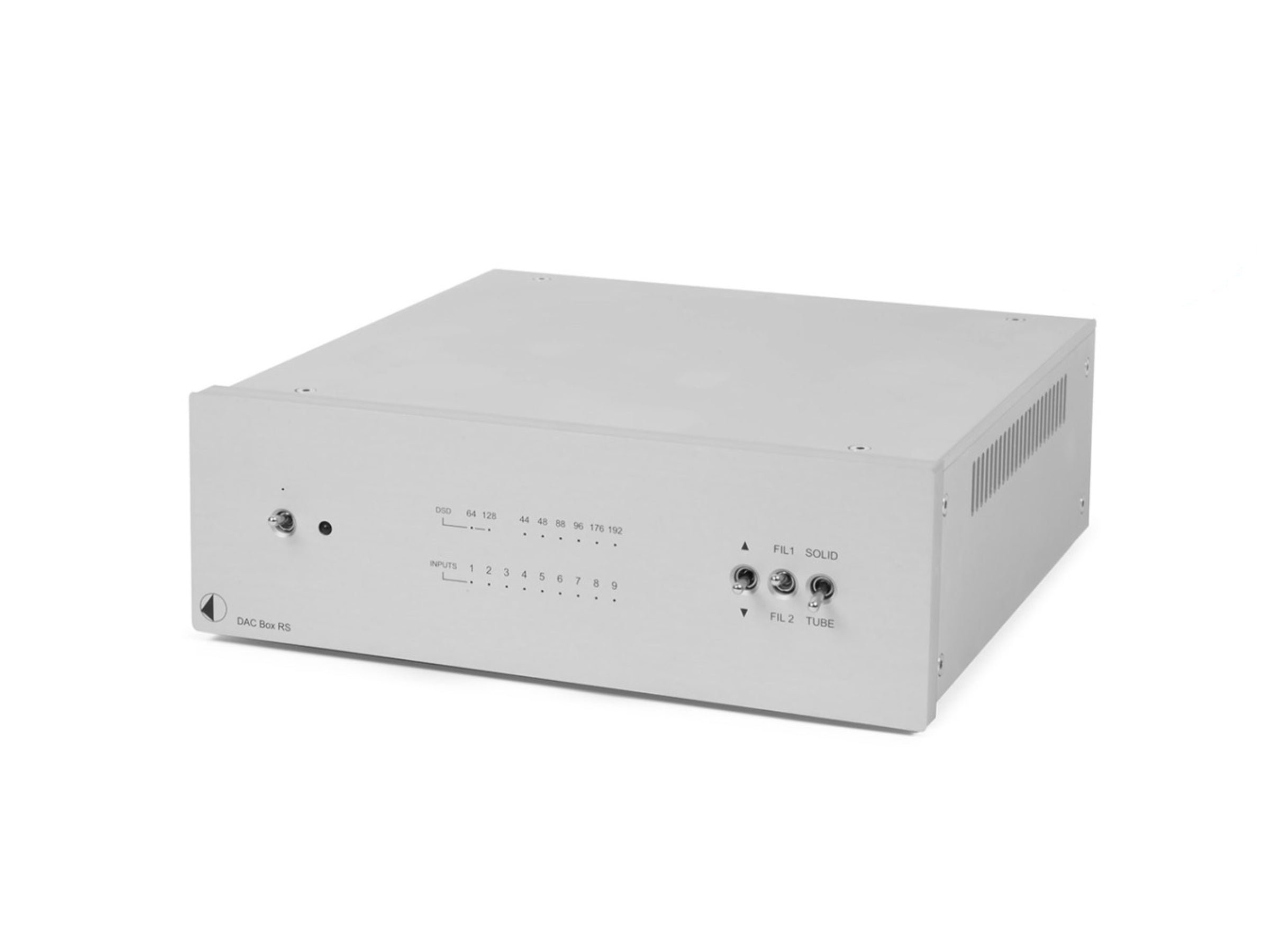

- Full aluminium casing in silver or black
- Made in Europe
Tube and Solid-State Output Options
The DAC Box RS offers the flexibility of two distinct output stages, allowing users to choose between a warm, relaxed tube output or a more detailed, dynamic solid-state Class A output. This versatility lets you match the DAC’s output to your personal taste and the style of music you enjoy. The inclusion of ultra-low noise, ultra-linear design, and a low output impedance ensures that the DAC delivers a clean and interference-free signal, regardless of which output stage you choose.

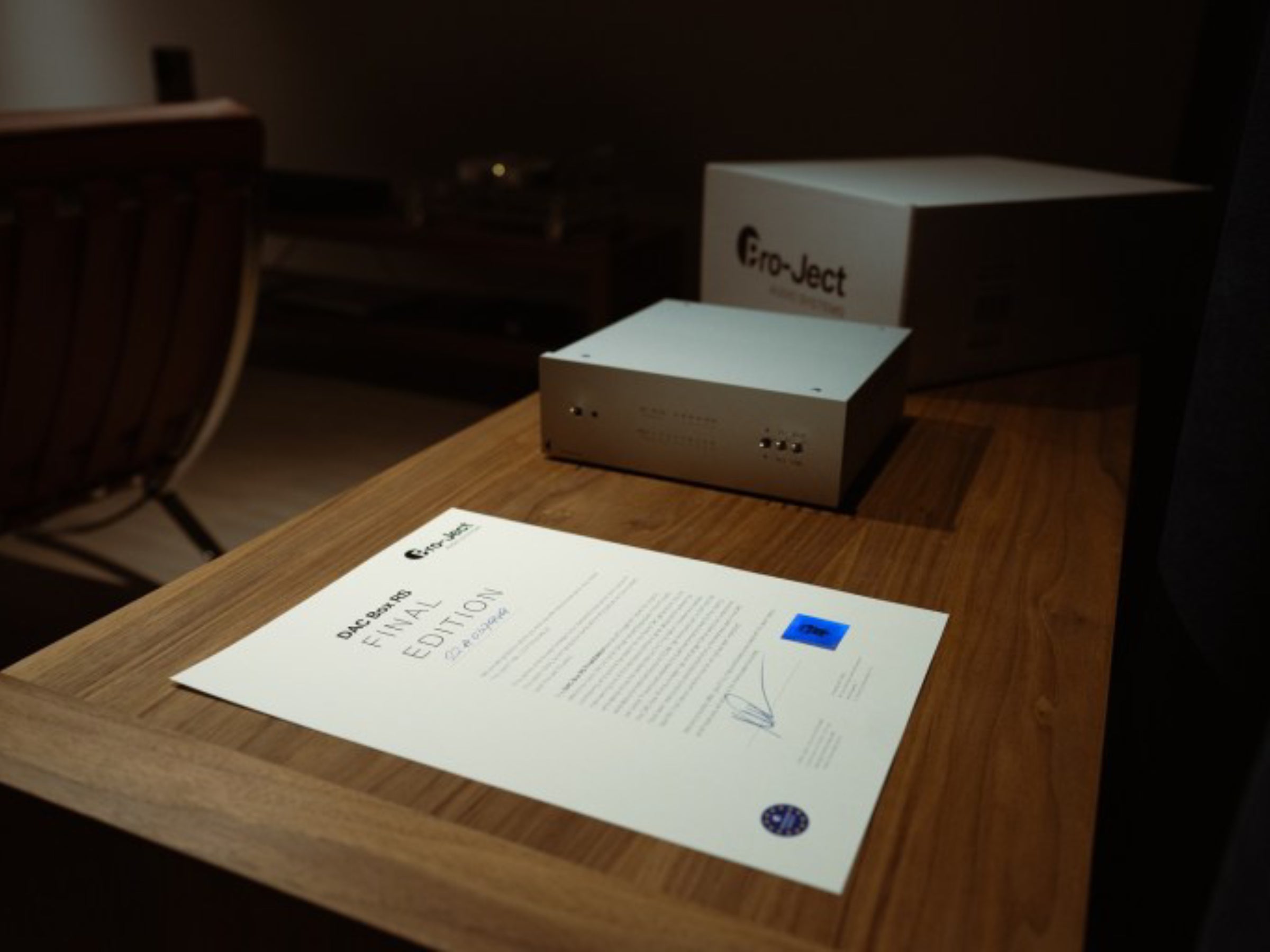

Exclusive Final Edition Improvements

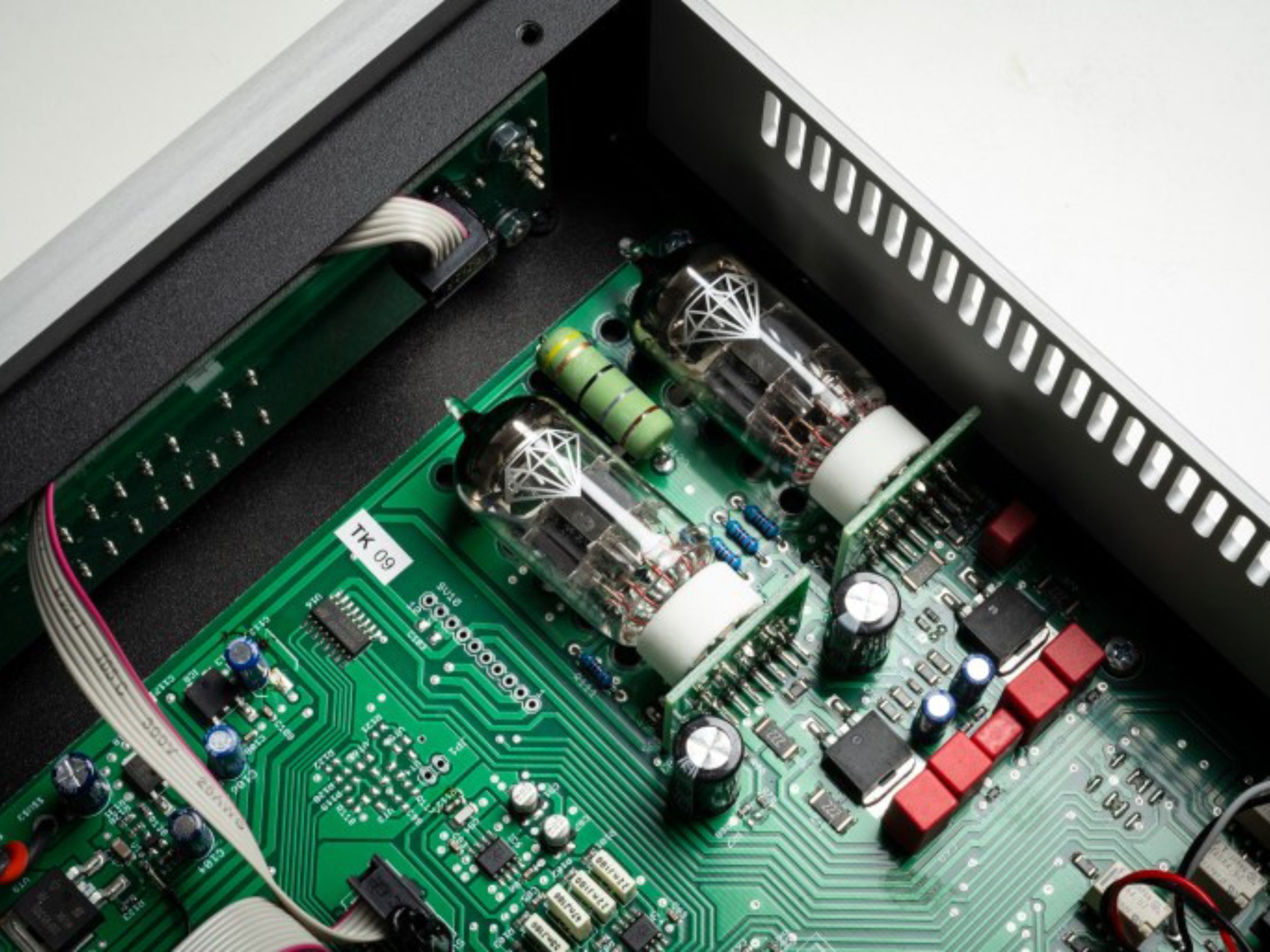

The Final Edition of the DAC Box RS takes audio performance to new heights with the inclusion of two specially selected and matched diamond ECC88 high-end tubes. These tubes enhance the overall sound, making the DAC Box RS an even more enticing option for audiophiles seeking top-tier performance at a competitive price. In addition to the upgraded tubes, the DAC Box RS Final Edition benefits from carefully chosen electrical components and improved internal wiring, ensuring only the finest materials are used.

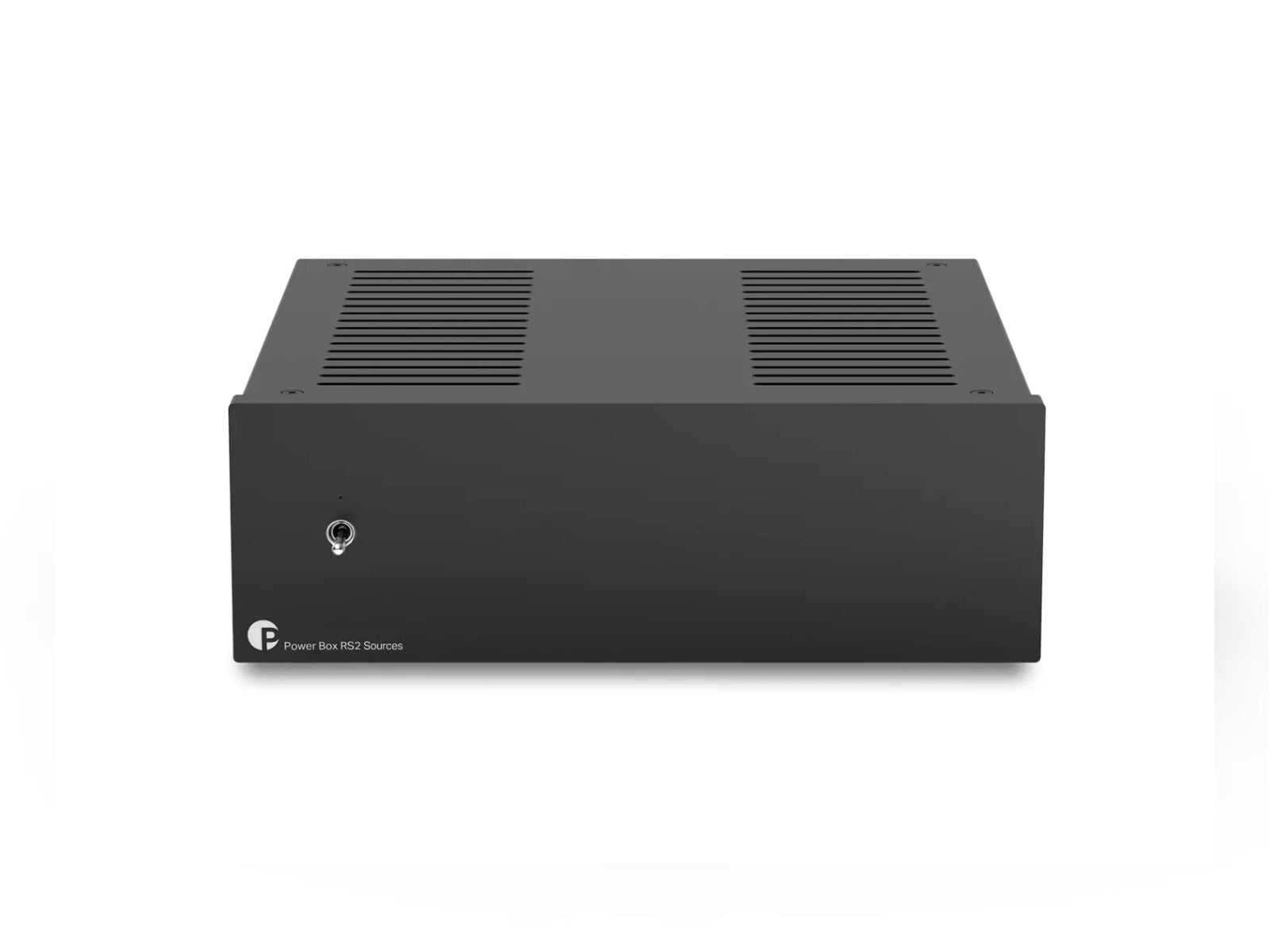

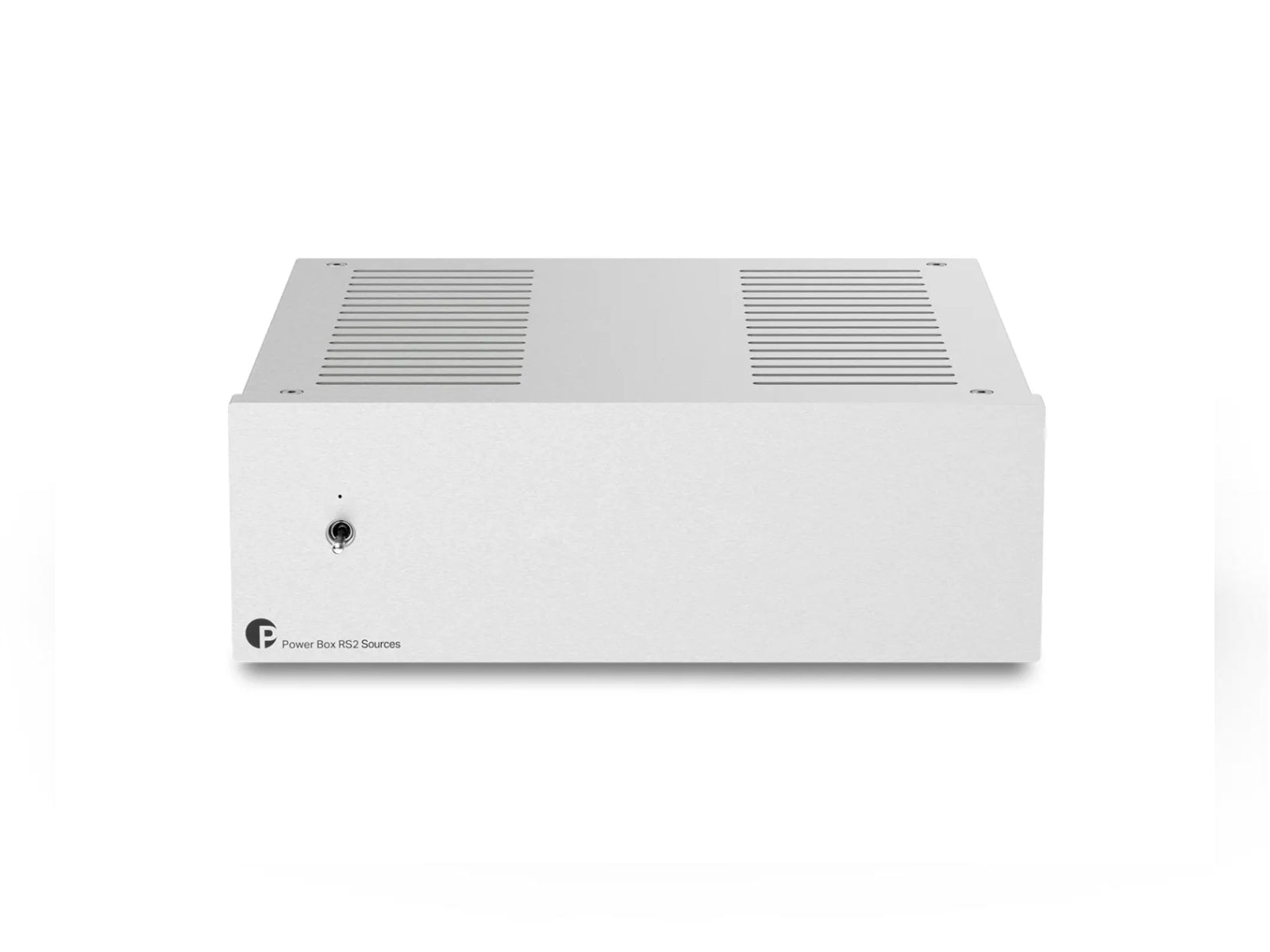

Upgrade with Power Box RS2 Source
For audiophiles who demand the best, the Power Box RS2 Sources provides a significant upgrade to the DAC Box RS. While the included power supply is already of high quality, the Power Box RS2 Sources elevates the performance of the DAC to an exceptional level. A linear power supply, with a toroidal transformer and shielding between the primary and secondary windings, isolates the DAC’s sensitive circuitry from interference that can often come from mains power. The separate unit design of the Power Box RS2 Sources, encased in a sturdy aluminium housing, offers superior shielding compared to other solutions, ensuring that the DAC Box RS operates at its best.
Features
- Powers four 20V RS/RS2 devices
- One power supply for all source components
- Improved sound stage and detail resolution
- Cleanest power using non-switching power supply
- Soft start system avoids current inrush
- Audio type toroidal transformer
- Main isolating transformer with copper foil shielding
- Secondary voltage rectification with precise regulation
- High filtration capacity (10.000 μF)
- Low ESR capacitors
- Low noise components with surge protection
- Rigid aluminium casing protects against interference
- Available in silver or black
- Made in Europe
DAC Box RS Final Edition Specifications
| D/A-Converter: | Double Texas Instruments PCM-1792 |
| Oversampling Design: | 8 x Oversampling design |
| Sampling Rates: | 32/44.1/48/88.2/96/176.2/192 kHz (except optical up to 96kHz) |
| Selectable Filter Settings: | “Steep” & “Optimum phase” |
| Digital Inputs: | 2x coax (S/PDIF), 4x optical (Toslink®), USB B, 1x AES/EBU, 1x I2S |
| Precision Clock Output: | BNC (use with CD Box RS) |
| Frequency Response: | 20Hz - 50kHz (+0/-1dB) |
| Output Stages: | ECC88 Diamond selection high-end tube and solid state (switchable) |
| Analogue Out: | RCA/Cinch & XLR |
| Output Voltage: | Max 4/2 Veff (XLR/RCA) |
| THD: | 0.005% solid state out, 0.25% tube out |
| Signal to Noise Ratio: | 100dB |
| Power Consumption: | <1 watt standby, 800/300mA max (tube/solid) |
| Outboard: | Power supply 20V/3A DC (included) |
| Dimensions (W x H x D): | 206 x 72 x 200mm (210mm with sockets) |
| Weight: | 1890g without power supply |
Power Box RS2 Specifications

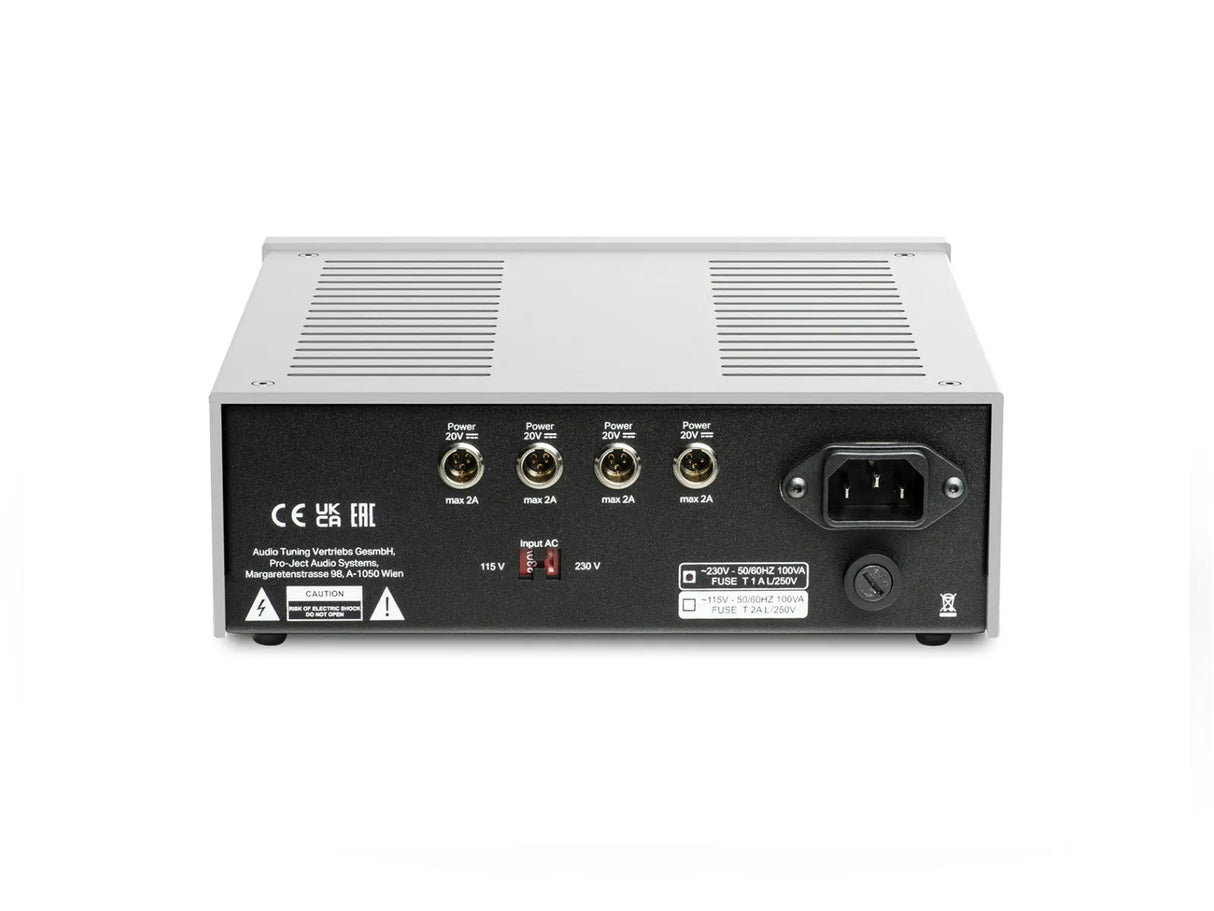

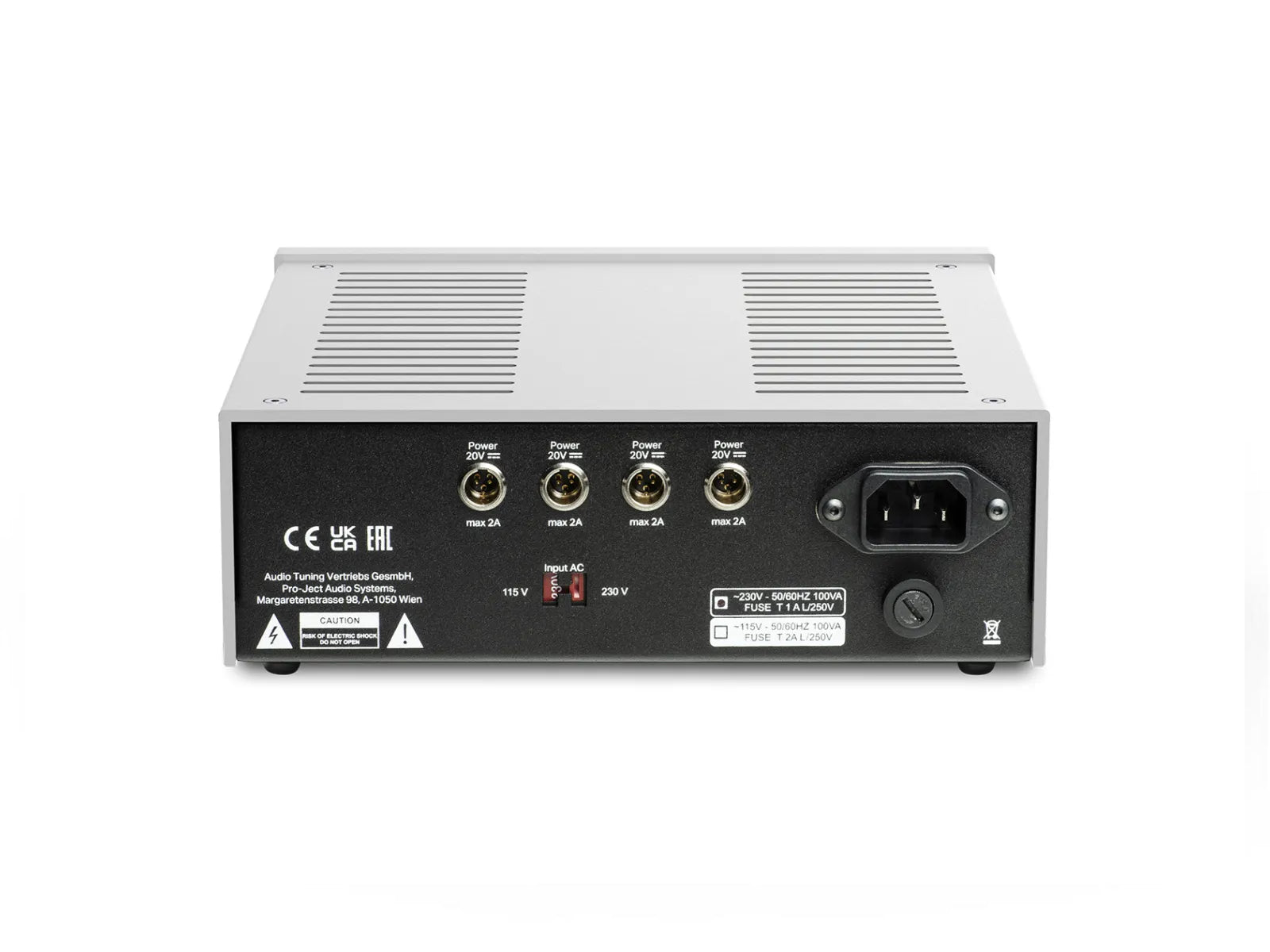

| Input Voltage: | AC 230V/50Hz IEC C15 connector (120V/60Hz US) |
| Output Voltage/Current: | 4 x 20V ±0.5% / 2A |
| Ripple: | Max. 6mV pp |
| Filtration Capacity: | 10,000 μF |
| Included Accessories: | 4x mini XLR/mini XLR connection cables |
| Dimensions (W x H x D): | 206 x 71 x 209 mm |
| Weight: | 3550 g |
