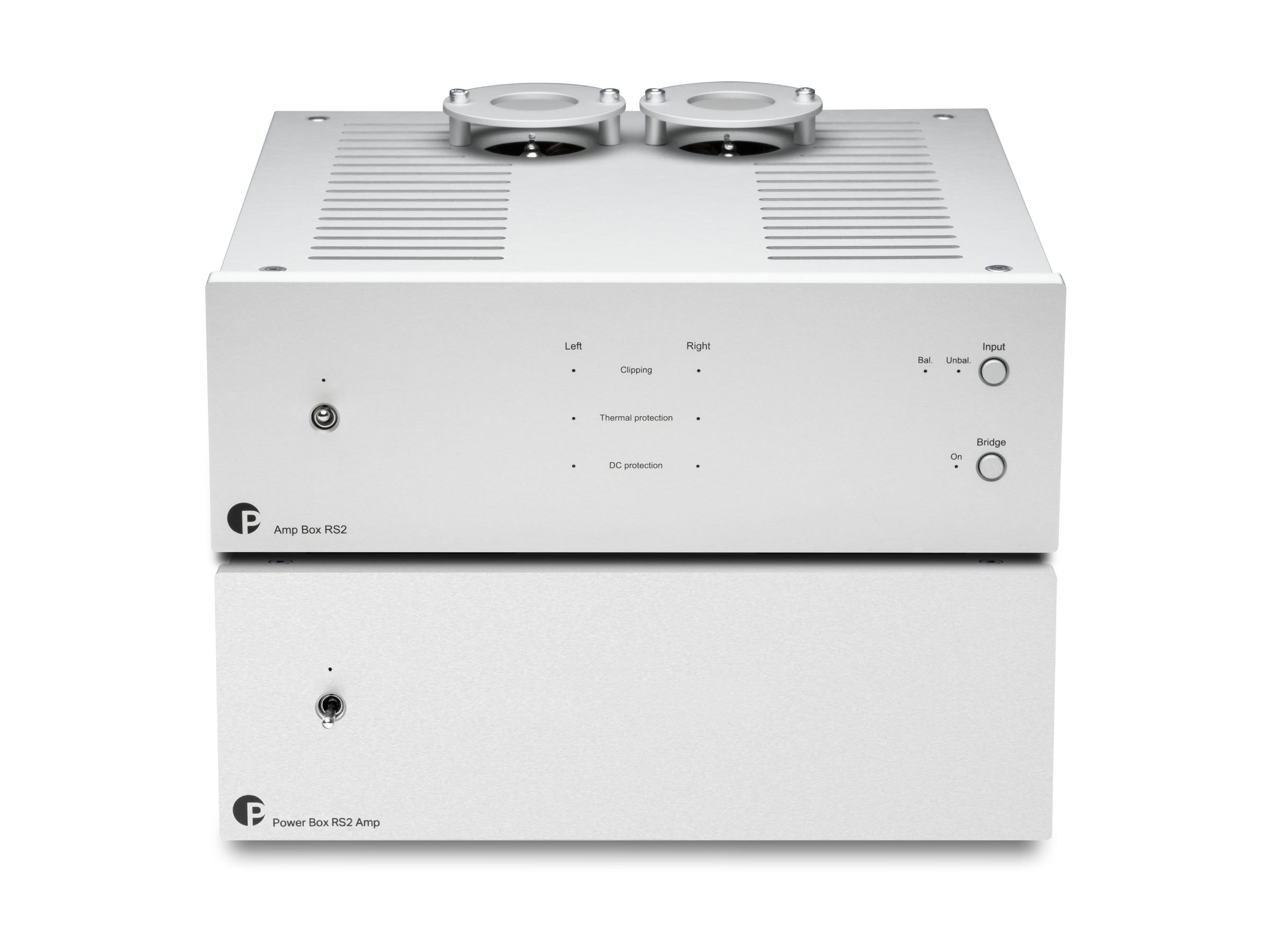

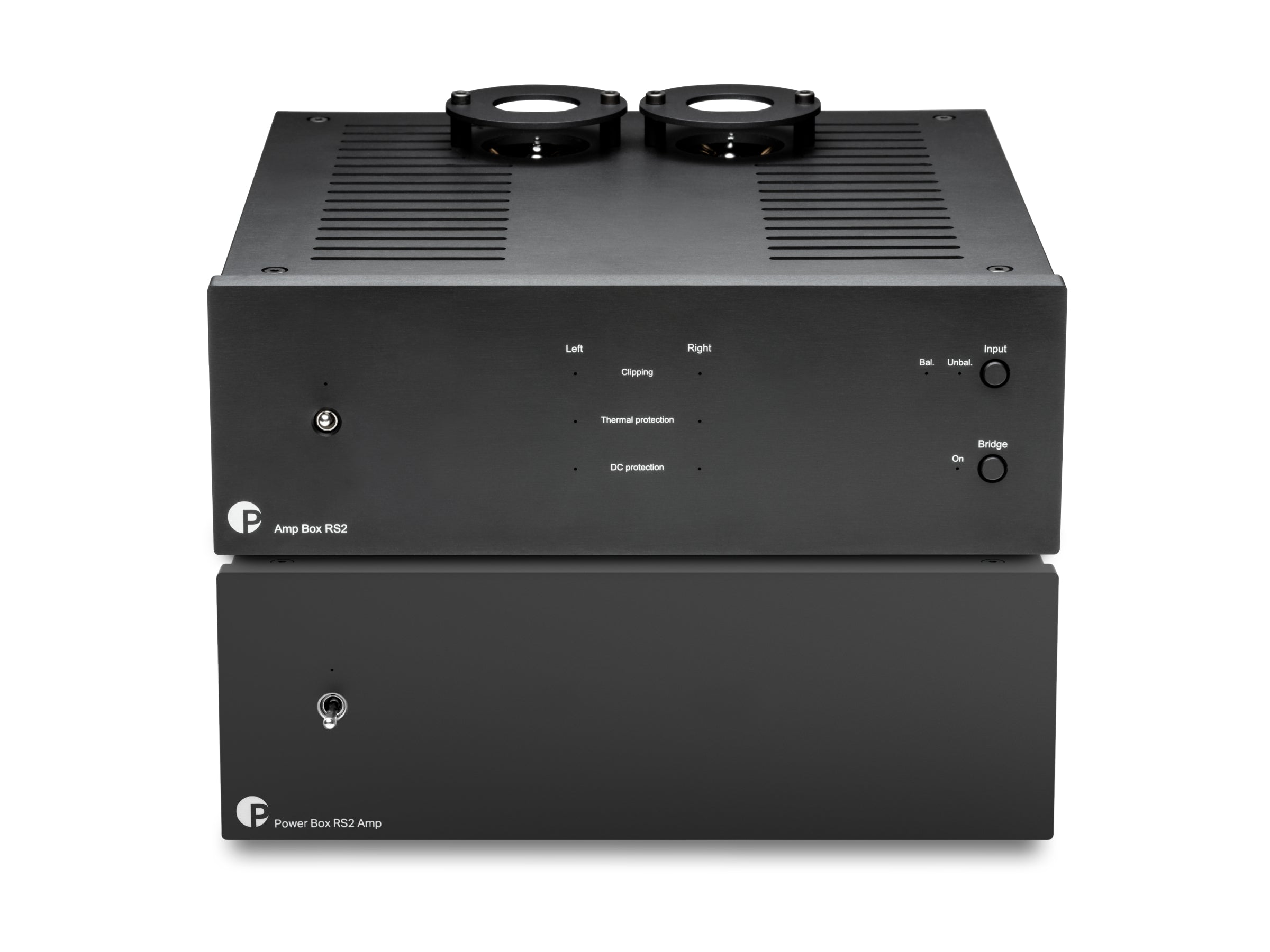

Pro-Ject Amp Box RS2 + Power Box Amp RS2 Intergrated Amplifer with Power Supply

£2,498.00

Tax included Shipping calculated at checkout.

The Pro-Ject Amp Box RS2 with the Power Box RS2 Amp offers enhancements in sound staging, deeper silences, and a greater resolution of fine details. These upgrades contribute to a significantly enhanced overall performance of each audio component.

Includes Pro-Ject 3 Year Manufacturer Warranty (with Registration)

Finish

Product variants

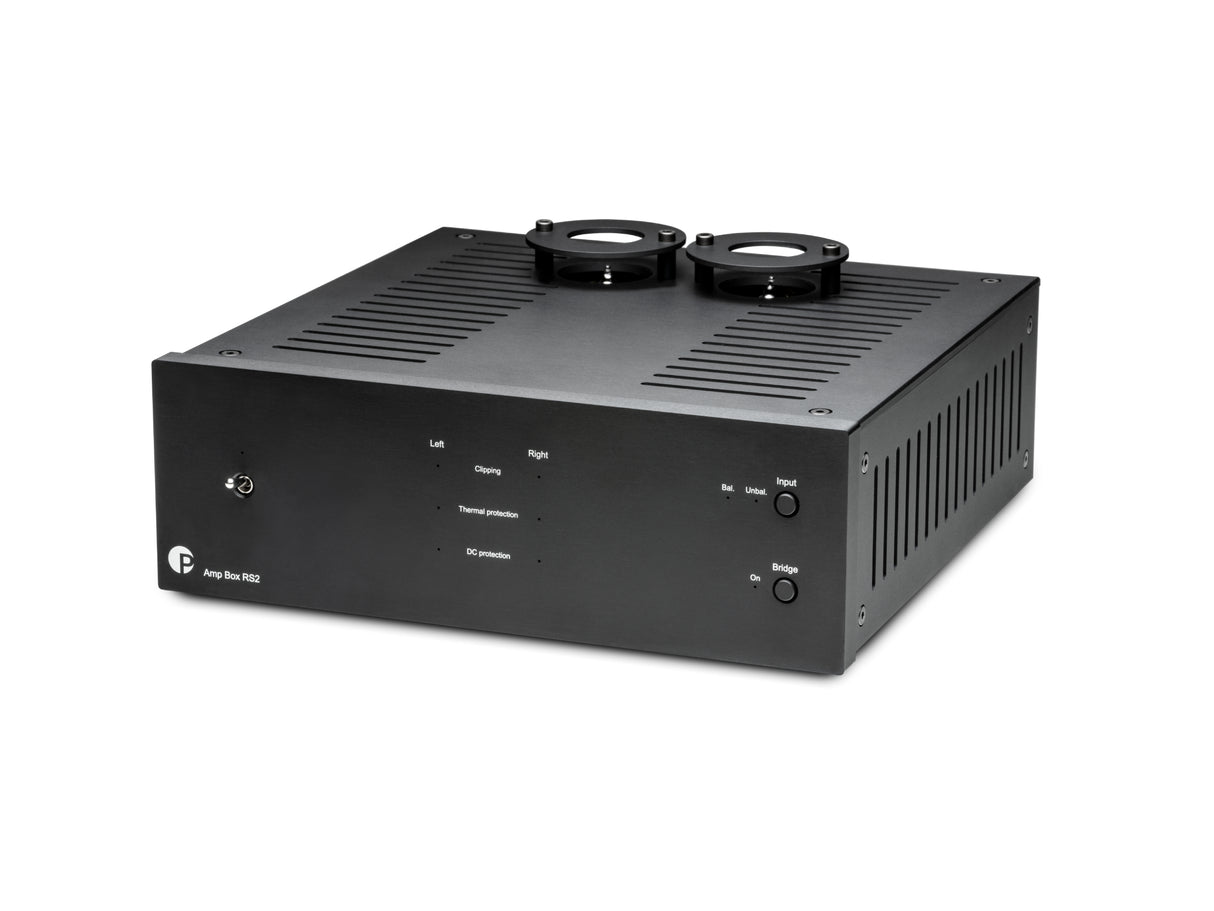

The Pro-Ject Amp Box RS2 is a high-end power amplifier that delivers an uncompromising listening experience. Designed to provide a three-dimensional soundstage, precise micro-dynamics, and exceptional resolution, it sets a new benchmark in audio fidelity.

This amplifier combines Class AB amplifier technology with a reference-grade tube buffer input stage, ensuring superior sound quality with minimal distortion. Its robust output connections and versatile input options make it a standout in the high-fidelity audio market.

Features

Class AB amplifier

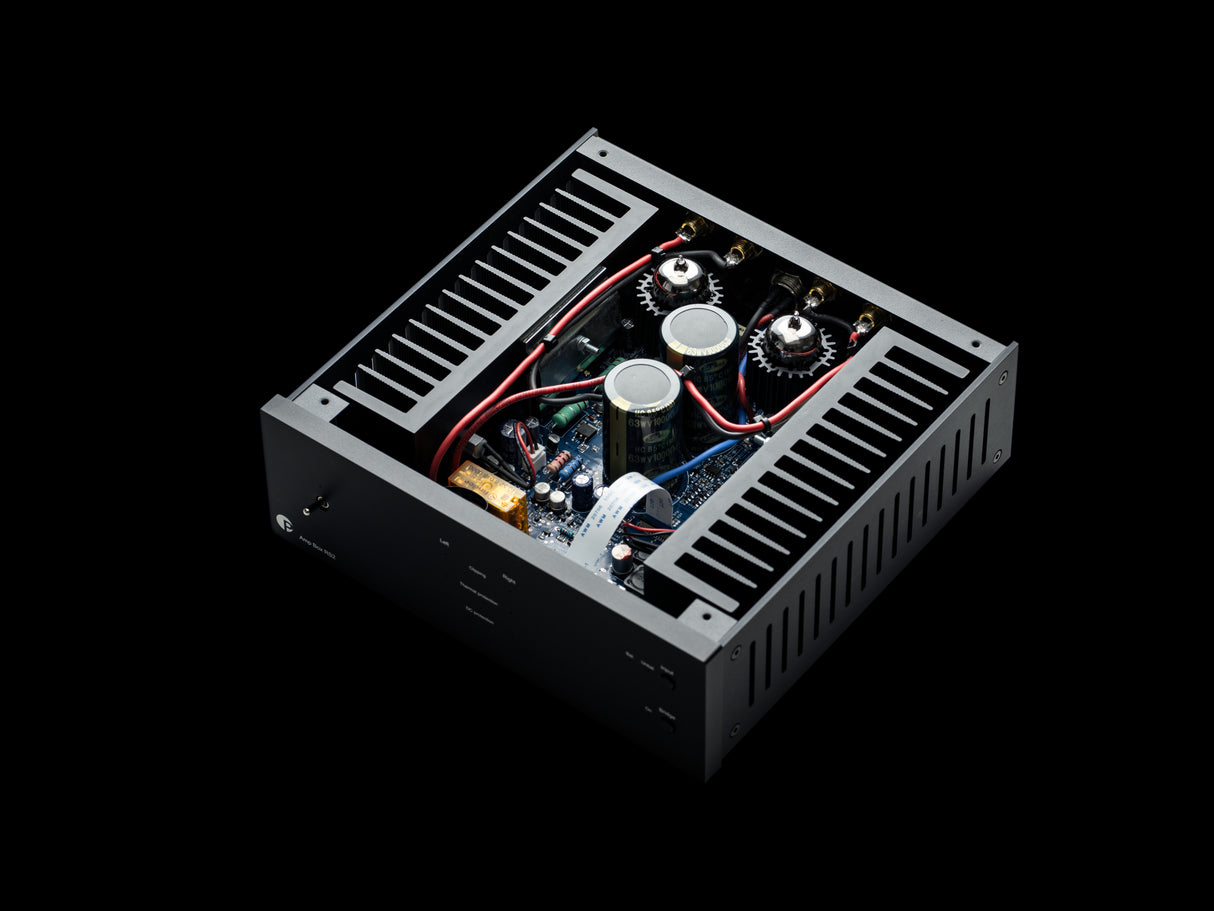

Fully discrete circuit design
Powerful 160W peak per channel at 4ohms (stereo)
350W peak in mono bridged configuration
Extreme dynamic power
Tube buffer stage with reference quality
Balanced XLR & single-ended RCA inputs
High quality gold plated speaker terminals
RS232 control
Full metal casing protects against vibration & interferences
Available in silver or black
Upgrade linear power supply available separately
Made in Europe

Luxury Design and Elegance

The Class AB amplifier design at the heart of the Amp Box RS2 combines the best qualities of both Class A and Class B technologies. This hybrid design guarantees high efficiency, low distortion, and superior fidelity. The reference-grade tube buffer input stage enhances its performance, offering exceptional sound clarity and depth. The amplifier is also housed in a luxurious full-metal chassis, available in sleek silver or black finishes, which not only contributes to its aesthetic appeal but also plays a crucial role in heat dissipation for optimal performance.

RS232 Control

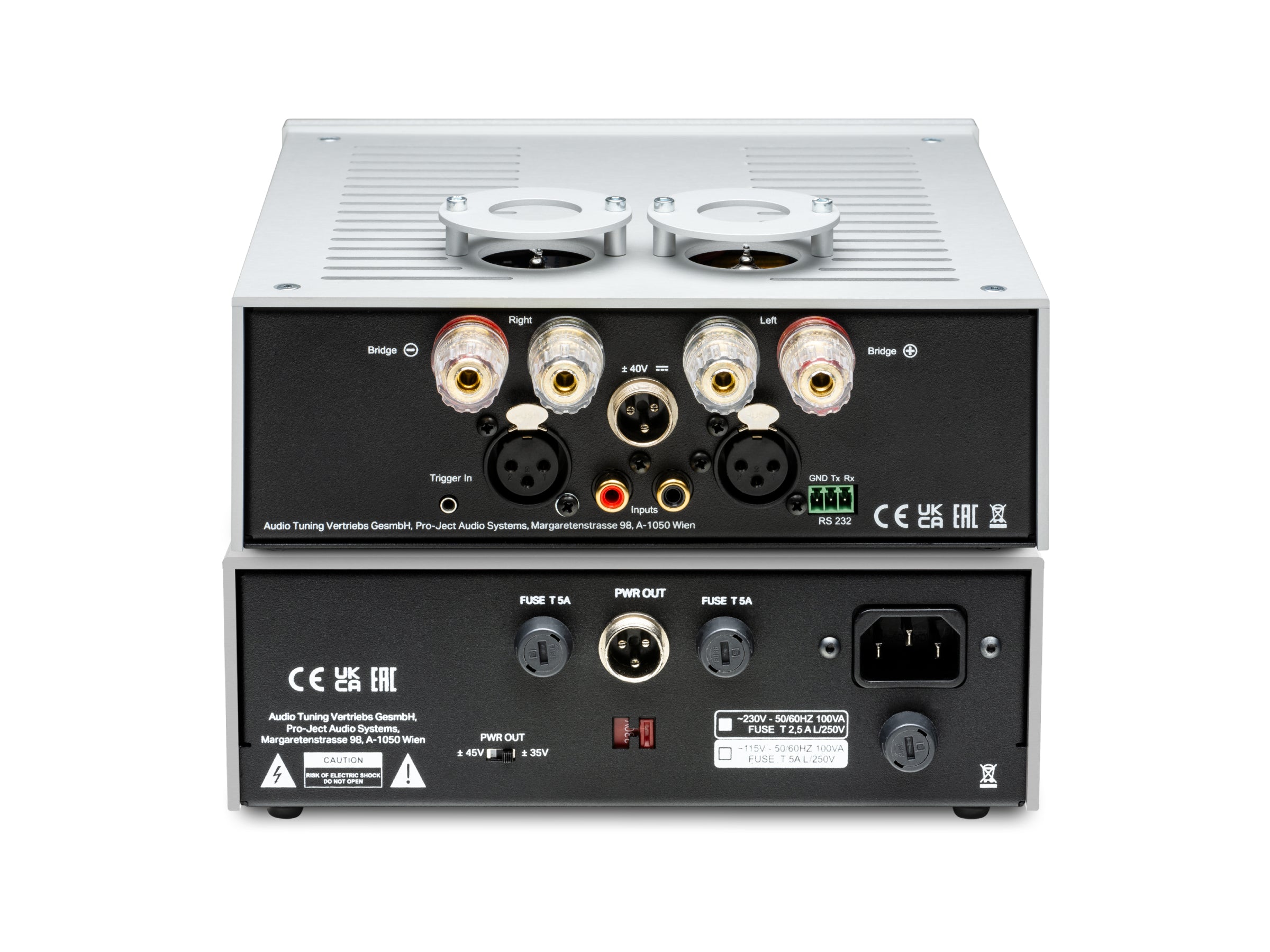

Equipped with both single-ended RCA input sockets and balanced XLR inputs, the Amp Box RS2 offers flexible connectivity options. Input selection is easily controlled via the front panel or through RS232 integration. The amplifier’s gold-plated, isolated speaker terminals support a range of connection types, ensuring compatibility with a variety of speaker cables.

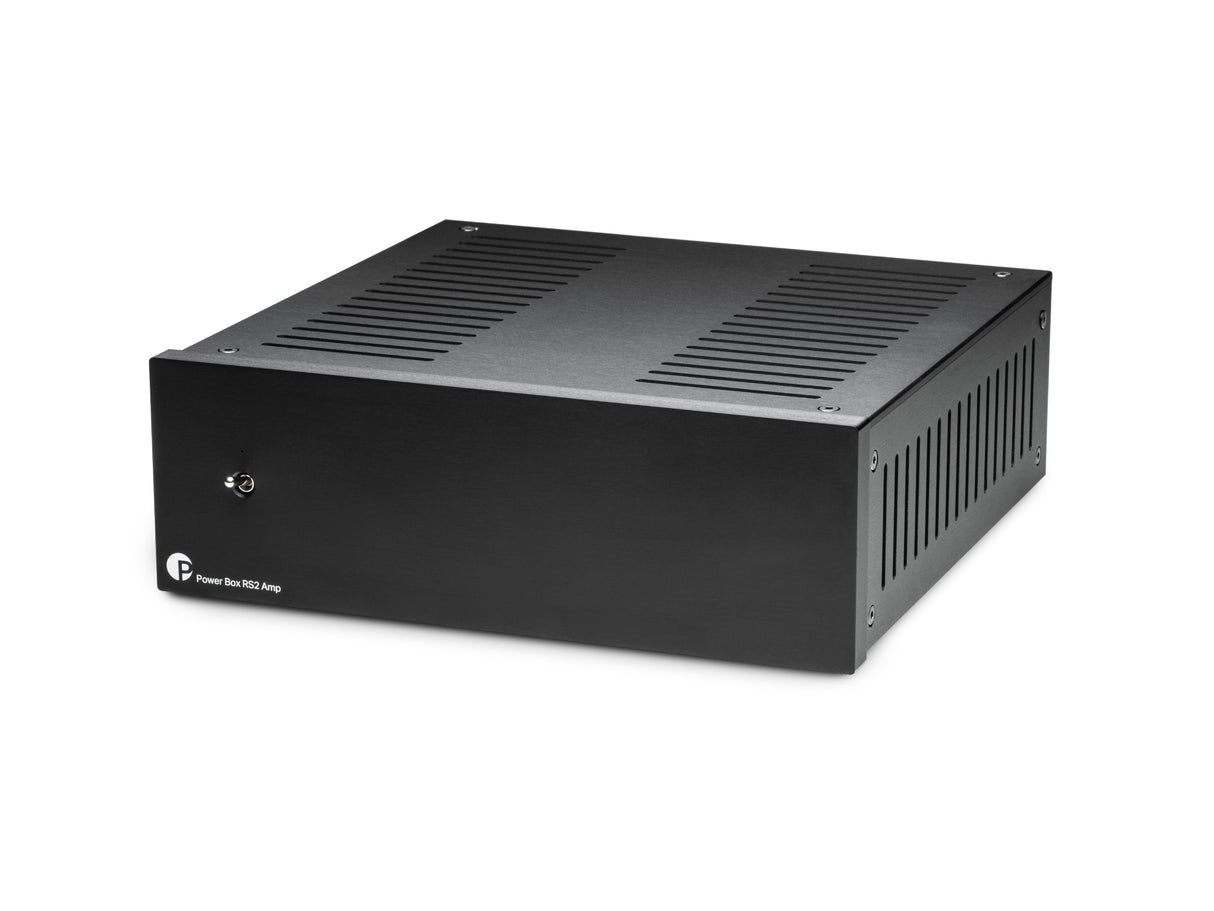

Power Box RS2

For those seeking even greater performance, the optional Pro-Ject Power Box RS2 Amp can be added, featuring a linear power supply with a toroidal transformer for enhanced power stability and superior audio reproduction.

The Cleanest Power Delivery

The power supply plays a crucial role in the audio path, significantly influencing the overall sonic performance of an audio product. By integrating the Power Box RS2 Amp with your Amp Box RS2, you can optimise the power contribution and achieve superior sound quality.

Features

Power supply for Amp Box RS2
Replaces original “switching” power supplies
Significant sound improvement
Improved sound stage and detail resolution
Cleanest power using non-switching power supply
Soft start system avoids current inrush
Audio type toroidal transformer
Main isolating transformer with copper foil shielding
Secondary voltage rectification with precise regulation
High filtration capacity (40.000 μF)
Low ESR capacitors
Low noise components with surge protection
Rigid aluminium casing protects against interference
Available in silver or black
Made in Europe

Avoids Interference Penetration

The linear power supply features a substantial toroidal transformer, which effectively prevents interference from the mains from affecting the audio component. This transformer offers a considerably higher power reserve than a standard power adapter, boasting a very low output impedance. When paired with extensive filtration capabilities, it effortlessly meets all power requirements.

Enhanced Sound Quality

This improved power delivery leads to noticeable enhancements in sound staging, deeper silences, and a greater resolution of fine details. These upgrades contribute to a significantly enhanced overall performance of each audio component.

The Power Box RS2 Amp is crafted in Europe and is available in a choice of black or silver, with a full aluminium housing.

Amp Box RS2 Specification

Power output:	2 x 130W / 80W at 4 ohms / 8 ohms (1% THD) - Bridged: 280W / 8 ohms (1% THD)
Peak power:	2 x 160W / 100W @ 4 ohms / 8 ohms - Bridged: 350W / 8 ohms (1% THD)
Noise floor:	- 73dBV ( -76dBV - ‘A’ weighted)
Frequency response 20Hz - 20kHz:	< -0.2 dB
Channel separation:	- 58dB at 10kHz at 4 Ohms
Signal to noise ratio:	97dBV (100dBV - ‘A’ weighted)
THD:	< 0.08% at 20W / 4 ohms
Gain:	27dB
Input impedance RCA/XLR:	47k/20k Ohms
Line level inputs:	1 pair RCA, 1 pair XLR
Speaker terminals:	4mm Ø Banana, spade or bare wire
RS232:	Pluggable 3-PIN Terminal Block
External power supply:	± 40V/5A DC; 100 - 240V, 50/60Hz
Standby consumption:	<0.5W in standby
Dimensions W x H x D:	206 x 85 x 200 (227mm with sockets)
Weight:	2660g without power supply

Power Box Amp RS2 Specification

Input power supply:	115V/230V AC
Output voltage - switchable:	±35 V / ±45 V
Output current:	4A
Filtration capacity:	40.000 μF
Included accessories:	Connection cable to Amp Box RS2
Dimensions W x H x D:	206 x 71 x 209 mm
Weight:	4700 g
