Chord SignatureX Tuned ARAY Analogue XLR (ChorAlloy plated)
Tax included. Stock information
Pickup also available at Doug Brady HiFi
Usually ready in 1 hour

Chord SignatureX Tuned ARAY Analogue XLR (ChorAlloy plated)
1m
Doug Brady HiFi
Kingsway Studios
Kingsway North
Warrington WA1 3NU
United Kingdom

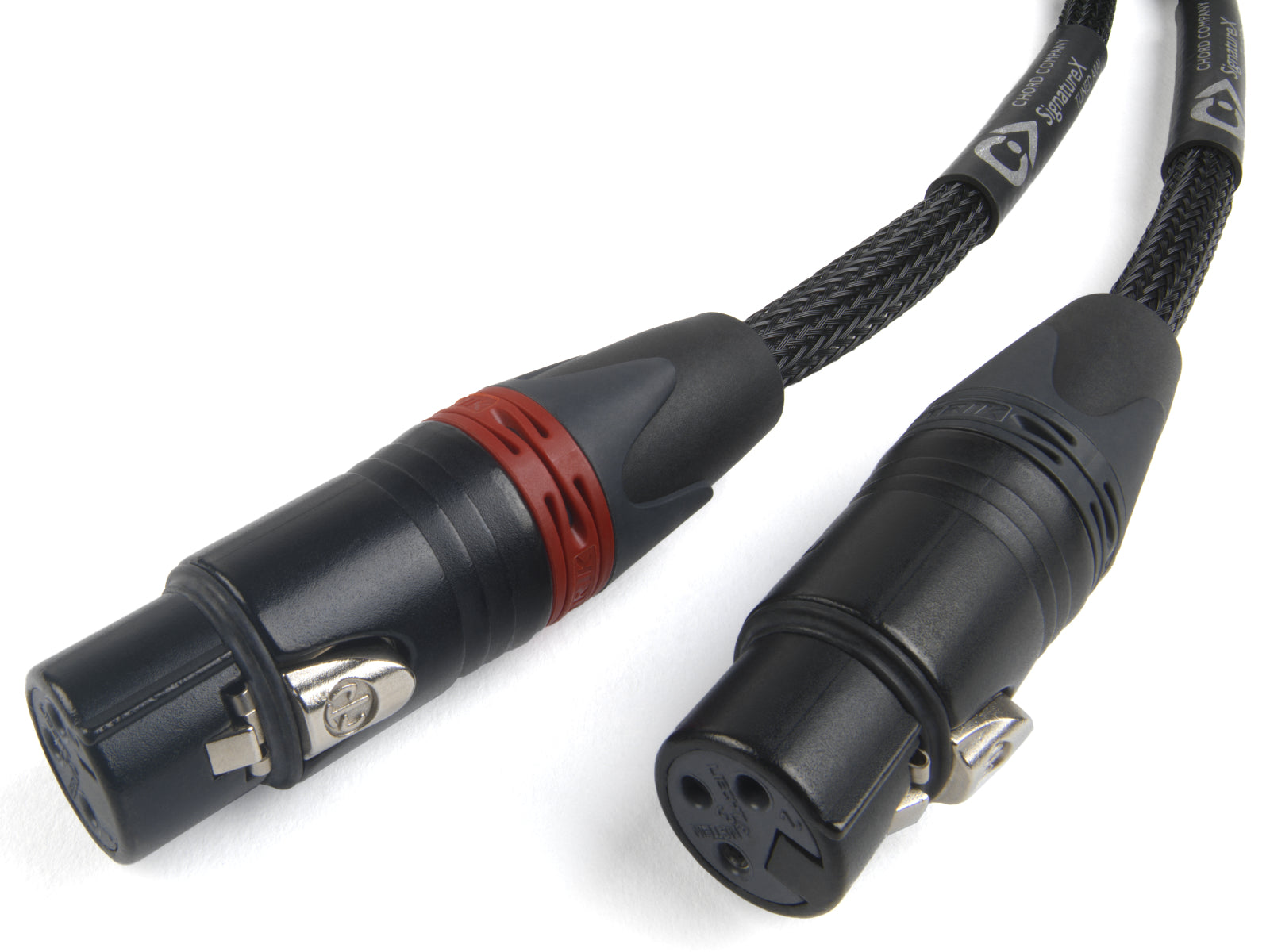

The Chord SignatureX Tuned ARAY Analogue XLR features advanced XLPE insulation, protective black braiding and Neutrik XLR plug fitted with Chord Company ChorAlloy™ plated connector pins. ensuring enhanced performance for your audio needs.
Using identical conductors for signal and return is a very easy was of improving the performance of an audio cable – something we’ve been doing for many years. With many XLR cables, the two signal wires end up being used to carry the hot (in phase) and the cold (out of phase) signals, while the earth/return connection is made with the shield.
We think there’s a better way, so we add a third identical conductor to carry the earth/return signal. It takes the shield out of the circuit and by doing so we can seriously reduce unwanted interference. All of our XLR analogue cables are built this way.
We also fit the Tuned ARAY conductor geometry, protective black braiding and Neutrik XLR plug – fitted with Chord Company ChorAlloy™ plated connector pins.
By using separate shielding on all three conductors and the Tuned ARAY conductor geometry, we have been able to produce a neutral and musically transparent XLR cable.
If you have both RCA and XLR connections and haven’t made up your mind which you prefer, consider trying both the Signature XLR and RCA Tuned ARAY and compare how much of the musical signal you get and just how real it sounds.
SignatureX Tuned ARAY 2XLR to 2XLR
Specifications:
Shielding - Dual layer heavy gauge foil and high density braid
Insulation - XLPE
Conductors - ARAY technology, silver-plated oxygen free copper
Connectors - ChorAlloy-plated Neutrik plugs
Compatible with line level components with an XLR output, for example:
CD Players, streaming devices, home theatre amps, DACs & pre - power amp
Available lengths:
1m, 1.5m, 2m, 2.5m, 3m & Custom lengths available
